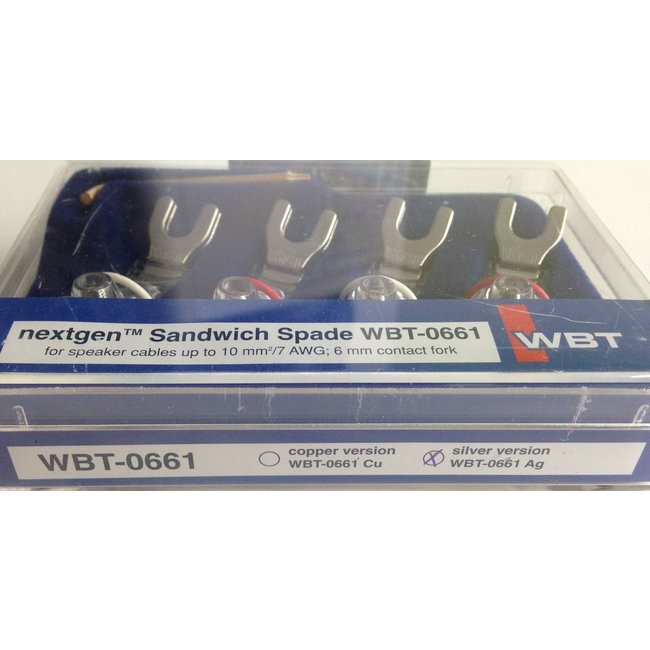

WBT Spade 6mm =box 4pcs =

nextgen Sandwich Spade NEW Version
Signature&nbspspade made from fine silver

nextgen The next generation of WBT connectors

It was turn for the welltried WBT Sandwich Spades to undergo their very special nextgen update The signal conductors of the&nbspAg versions have always been built by fine silver and their construction was based already on the minimal mass principle New thing is that the base body of the spade now represents a nearly metalfree construction to become a 100 nextgen connector You will certainly enjoy a much more detailed and spacious sound performance of your HiFi set

&nbsp	Highcurrent spade

&nbsp	Signal conductor made of fine silver

&nbsp	24 carat direct gold plating nickelfree

&nbsp	Sandwich spade for constantly high contact pressure

&nbsp	Elastomer oscillation damper for superb vibration damping and fracture resistance

&nbsp	CE and IEC compliant

&nbsp	Crimping using the WBT double Torx screw system

The key of the superb quality of this spade lies in the patented Sandwich design of its contact fork Elastomer oscillation dampers eliminate airborne noise and mechanical vibrations as well as magnetostrictions This ensures almost total suppression of contact microphonics and there is no interfering ancillary noise The fracture resistance of the connection is improved at the same time The sandwich design of the contact forks sandwich spades with elastomer inserted in a steel cap generates high and uniform contact pressure while minimising transition resistance Three punched contact points on the bottom of the fork ensure precision contact The quality of signal transmission is markedly improved particularly with high currents or small voltages The surface of the&nbspsilver conductor is protected against oxidation by nickelfree 24 carat gold plating to underpin the low transition resistance levels in the long term

The spade is connected to the cable by means of crimping The two Torx screws with fine thread are making for a reliable connection with high tensile strength

The plug elements are fully insulated and meet the CE and IEC safety requirements

EP patent no 1 066 660 US patent no 6319078

Fork widths	WBT0661&nbspAg 6 mm fork 1/4 inch WBT0681&nbspAg 8 mm fork 1/3 inch
Conductor cross section max	10 mm 7 AWG
Connection technology	crimping
Identification	red white or black

Recommended tool	> Torx T6 wrench WBT0488 supplied with each end consumer package > Torque screwdriver WBT0481 for professional OEM mounting > Crimping pliers WBT0403 also see crimping set WBT0411
