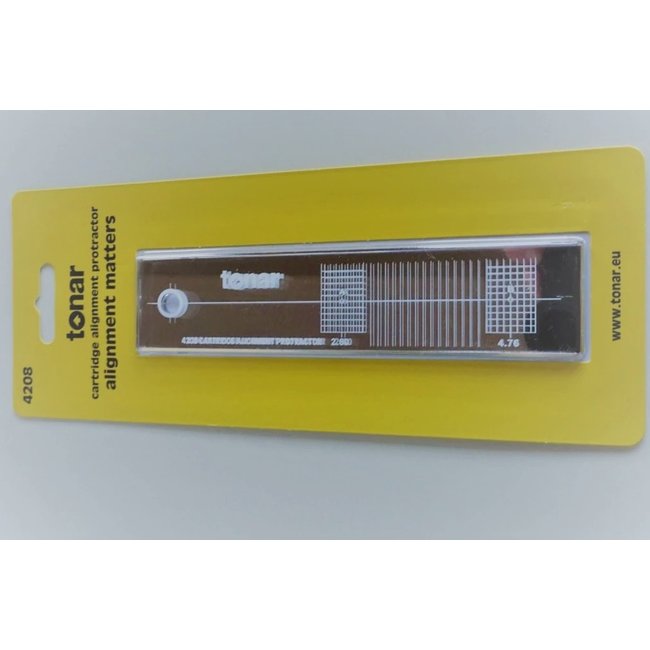

Tonar AlignmentTool / Protractor

This cartridge alignment protector allows the proper setting of the cartridge offset and overhang.

An alignment protractor is used to find the correct distance from stylus tip to tonearm pivot
When aligning a cartridge for tangency using the alignment protractor it is essential to remember that you are attempting to align the cantilever and hence the stylus not the cartridge body There is no guarantee that the cantilever is perfectly aligned within the cartridge body so simply aligning the cartridge body will not necessarily produce the desired result
Furthermore many cartridge bodies have nonparallel sides making tangential alignment of the cartridge body with the lines of tangency on the gauge virtually impossible
An alignment protractor is a plastic template onto which are printed the null points and lines of tangency against which the cartridge should be aligned The template is placed over the turntables spindle made possible via a spindlesized hole drilled in the template and placed against the platter
Cartridge must be adjusted until the cantilever is parallel to the set of parallel lines And this should be achieved for both the indicated points When the cartridges longitudinal axis is parallel with the horisontal lines tracking error will be at a minimum
