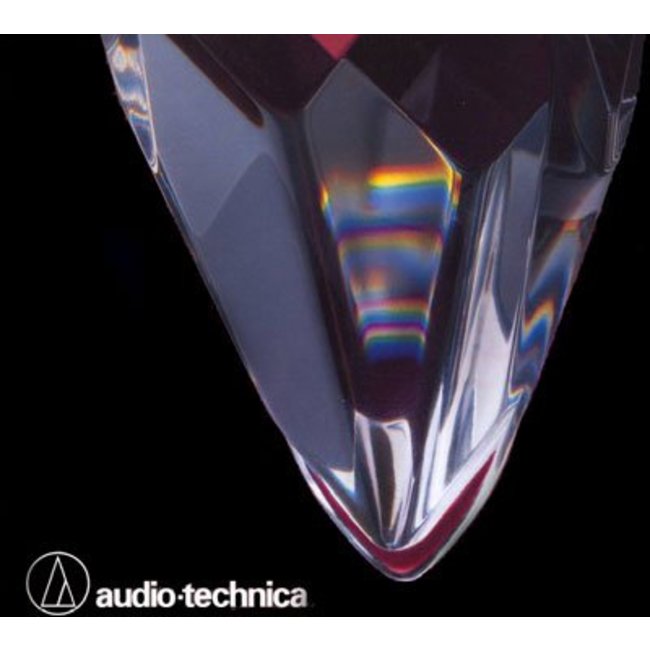

Audio Technica AT-OC9XML Dual Moving MicroCoil (MC)
Audio Technica AT-OC9XML Dual Moving MicroCoil (MC)

Audio Technica AT-OC9XML Dual Moving MicroCoil (MC)

€599,00Incl. VAT (BTW)
Op voorraad

The AT-OC9XML Dual Moving MicroCoil™ cartridge is a significant achievement in precision manufacturing, with tolerances held to mere thousandths of an inch. Stringent quality control assures that these tolerances, as well as performance criteria, a... Lees meer..

Ships today
  • Voor 15.00u besteld?

    Dan wordt je bestelling vandaag verzonden
  • Een echte winkel

    Kom ook eens bij ons langs in Den Haag
  • Klantenservice?

    Bel 070 - 36 32 777 voor vragen, tips of advies

Productomschrijving

The AT-OC9XML Dual Moving MicroCoil™ cartridge is a significant achievement in precision manufacturing, with tolerances held to mere thousandths of an inch. Stringent quality control assures that these tolerances, as well as performance criteria, are maintained by every AT-OC9XML cartridge. In addition, the AT-OC9ML/II features:

  • Dual-coil system for maximum channel separation.
  • High-flux samarium cobalt magnet for improved electrical generation.
  • PCOCC coil windings for low-loss “transparent” signal transmission.
  • Gold-plated solid boron cantilever.
  • MicroLine™ stylus.



Specifications

Cartridge system
MC
Output voltage
0.4mV
Channel balance 1kHz
1.0dB
Channel separation 1kHz
30dB (1kHz)
Frequency range
15-50.000Hz

Reviews

0 beoordelingen

Specifications

Cartridge system
MC
Output voltage
0.4mV
Channel balance 1kHz
1.0dB
Channel separation 1kHz
30dB (1kHz)
Frequency range
15-50.000Hz
Compliance
9x10-6cm/dyne (100Hz)
Stylus type
Microline on gold plated solid boron
Stylus tip radius
Microline
Tracking force range
1.25-1.75g
Tracking force recommended
1.5g
Tracking angle
23degr
Internal impedance DC
10 ohm
Internal inductance
25uH
Recommended load Resistance
More than 100 ohm
Cartridge weight
8.0g
